Monitor and Receive Critical Alerts Anywhere

Set-up, adjust, monitor and control the GX2-ECM from a PC, MAC or Smartphone from anywhere via secure cellular or Ethernet connection.  A local WiFi connection is standard as well.  All information is stored and maintained in the GX2-ECM, so if connectivity to the internet is lost due to harsh weather conditions or circumstances beyond control, access to the control system and historical data is not!

Receive critical alarm or system messages directly to personal e mail accounts or text messages directly to a phone.  There is no special software required, all information is provided by the GX2-ECM through a standard web browser or switch to much more space conscious dashboard mode when using a smart phone or other device where screen real-estate is at a premium.

Advanced Remote Sensor Array

The GX2-ECM comes ready to go with an impressive array of plug-n-play, weather resistant, sensor connections to provide critical environmental data and feedback for all of the important environmental conditions that exist whthin an enclosed grow system.

1 - Outdoor Environmental Sensor with Sun Shield Connection
1 - Environmental Sensor Connection
2 -Temperature Sensors Connections
1 - Ambient Light Level Sensor Connection
1 - Water Pressure Sensor Connection

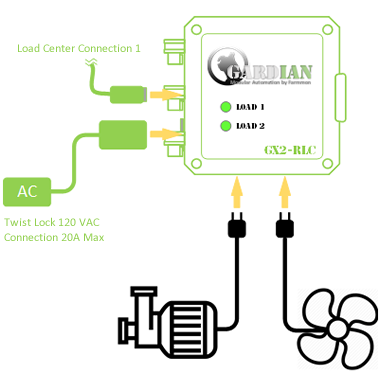

Remote-Mount Load Control Centers (GX2-RLC)

The GX2-ECM comes with connections for 2 GX2-RLC modules.  Each Load Control Center has 2 individually controlled, standard 110 VAC circuits.  Each circuit is capable of performing several different user configurable functions such as turning ventilation fans on and off based on temperature and or humidity, controlling heaters for winter time operation, or supplemental grow lighting based on available ambient light levels. For hydro applications that require constant water flow, a load control center can be placed in Hydro Redundant mode to control multiple pumps with built in features like equal runtime, standard lead-backup or auto alarm switchover.

No matter what type of load is being controlled, the load control center monitors the current per circuit to make sure if something is supposed to be on, it is.

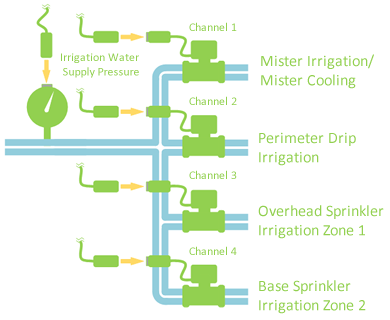

4 Independantly Controlled Irrigation Channels

The GX2-ECM comes complete with 4 - 3/4 inch NPT Automatic, Brass Body irrigation valves, 1 valve per irrigation channel.

Sizes from 1/2 Inch NPT to 1 Inch NPT in brass or stainless are also available as standard options.

Each Irrigation Channel can be independantly scheduled to provide irrigation during a specific times throughout the day or placed into a "Smart Cycle" mode where irrigation occurs based on several user configurable factors such as frequency, duration, day, night, humidity and temperature for those applicatons with unique irrigation requirements.

A water pressure sensor with mounting hardware is provided to monitor supply water pressure.  This provides feedback to the system that irrigation actually occured and remote notification if water pressure is lost.
